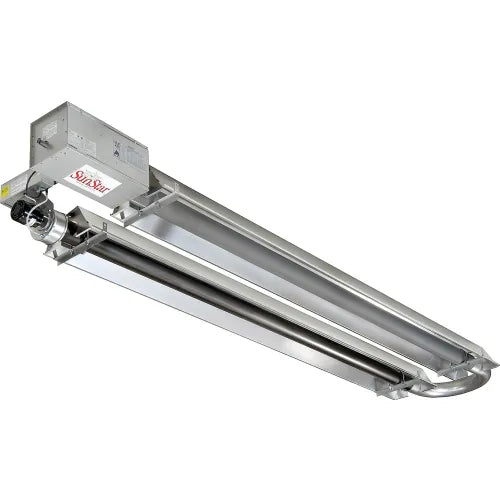

SunStar SIR25-15-N5 Natural Gas Compact U Tube Heater 25000 BTU

SunStar® SIR Series Natural Gas Infrared Compact U Tube Heater, 15' Tube Length, 25000 BTU - WBB59941

$2,429.00 - $2,429.00
$2,429.00
$2,429.00 - $2,429.00
$2,429.00
Availability:
in stock, ready to be shipped

30-day returns on eligible items

See our Return & Refund Policy for details. Some brands are not eligible for return; check the product description.

The SunStar Eclipse compact tube heaters offers fuel savings of up to 50% and provides an efficient source of radiant heat for a wide variety of hard to heat spaces including workshops, residential garages, greenhouses, enclosed patios, restaurants, farm buildings, small manufacturing and lower ceiling height spaces. The U-tube configuration provides uniform energy distribution and the emitter tubes are made of heat treated aluminized steel. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50' of ducting in fresh air and 75' sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. This product has 5 year limited warranty on tubes and 1 year limited warranty on unit. This product is made in USA.

Professional Installation Required: This heater must be installed and serviced by a licensed gas contractor and must conform to local codes (CSA B149.1 in Canada).

Specifications

Weights & Dimensions

Length 11-1/4 in
Width 18 in
Height 8 in
Weight 70.4 lbs
Tube Length 15 ft
Min Mounting Height 8 ft
Duct Size 4 in
Burner Pressure 3-1/2 in
Clearance to Combustibles Bottom 44 in
Gas Inlet Pressure Max Water Column 14 in

Product Details

Tube Material Aluminized Steel
Mounting Location Wall or Ceiling
Material Cast Iron/Aluminum
Ignition Type Direct Spark
Phase 1
BTU 25000 BTU
Manufacturers Part Number SIR25-15-N5
Shape U
Brand SunStar
Type Negative Pressure Tube
Amperage 2.4 A
Voltage 120 V
Includes Diaphragm Air Switch, Cast Iron Burner, Burner Inspection Sight Glass
Power Cord Type Hard Wired
Fuel Type Natural Gas

Warranty

Warranty 1 yr

Compliance & Certifications

Certifications CSA
